WTB STi23 TCS/Shimano RS470
WTB STi23 TCS/Shimano RS470
Low stock
Couldn't load pickup availability
WTB STi23 TCS/Shimano RS470
- Rims: WTB ST i23 700C
- ETRTO 622-23
- Inner width: 23mm
- Disc Brake Only
- Drilled for Presta valve
- TCS 2.0 Tubeless System compatible
- Solid Strip (included)
- 32 holes

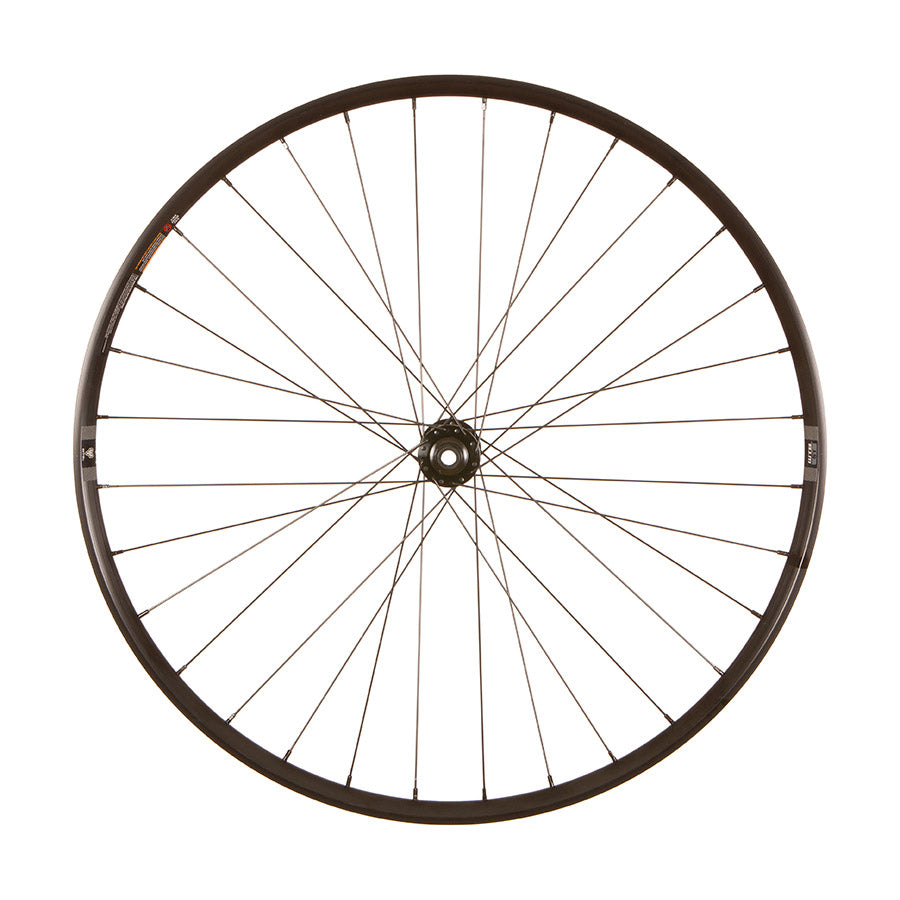

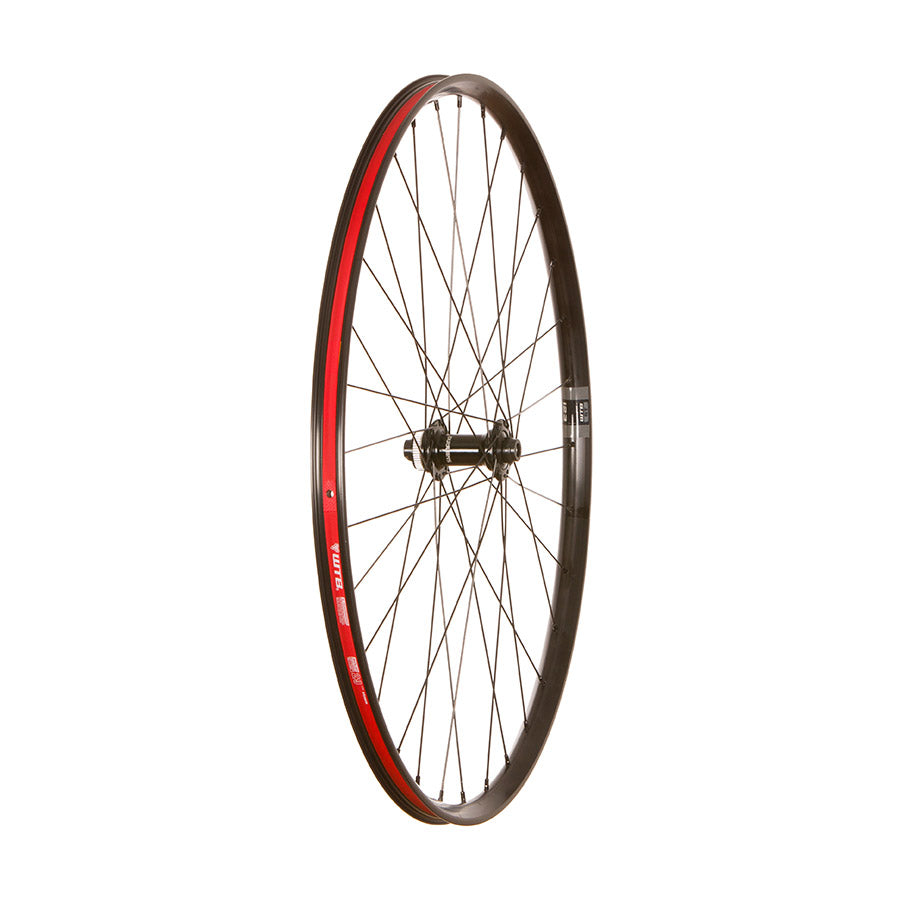

Front hub: Shimano HB-RS470 Tiagra series
- 12x100mm E-THRU (Axle not included)
- Center Lock Disc Mount
- Polished angular contact bearings with Internal Grease Sleeve
- Contact sealed hub

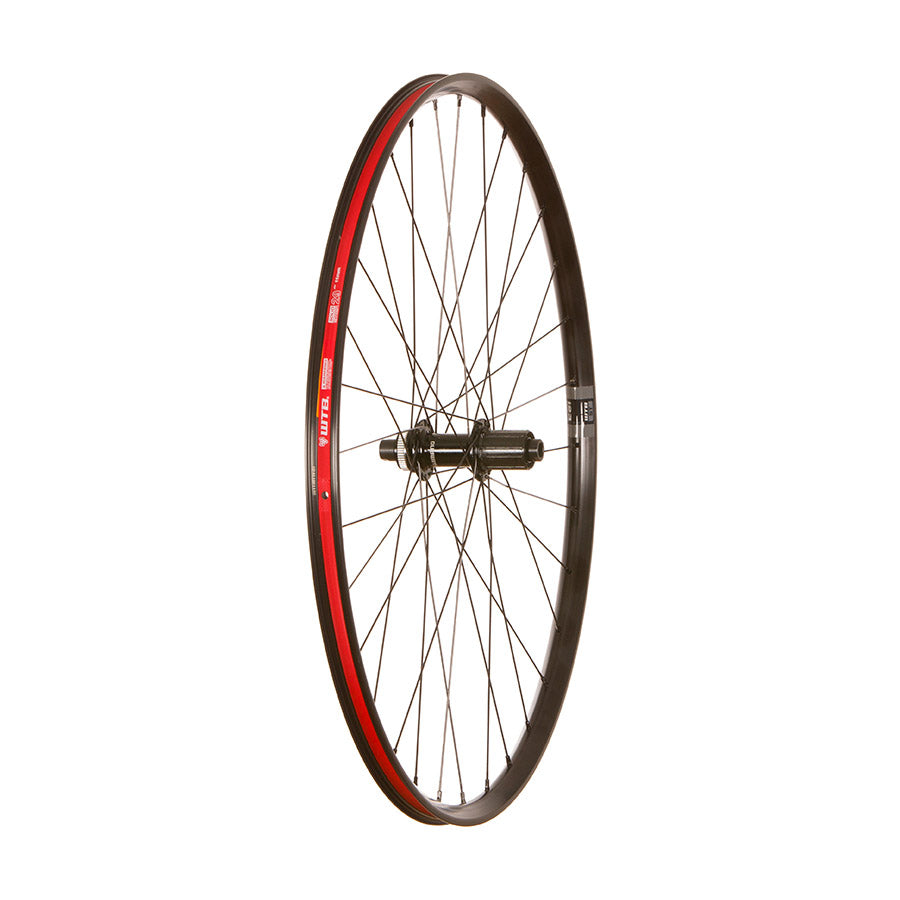

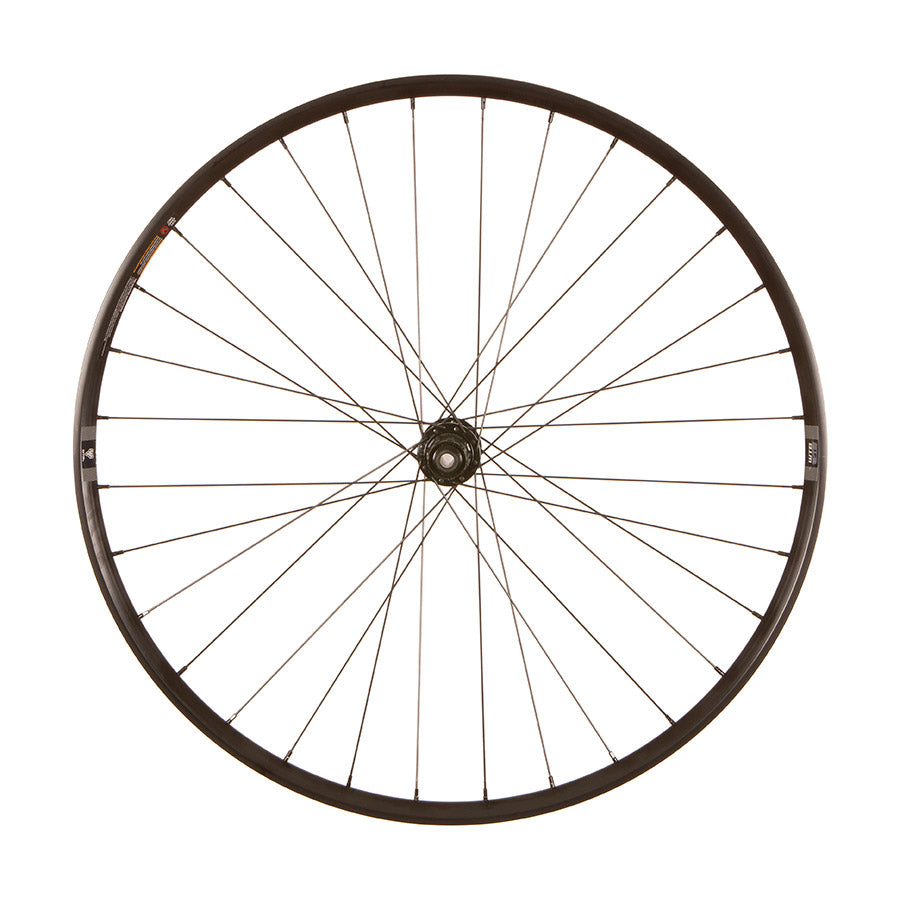

Rear hub: Shimano FH-RS470 Tiagra series
- 12x142mm E-THRU (Axle not included)
- Center Lock Disc Mount
- Polished angular contact bearings with Internal Grease Sleeve
- Contact sealed hub and freehub body
- Compatible with 11/12 speed Road (10 speed compatibility requires 1.85mm spacer, not included)
Assembled in North America by experienced wheelbuilders with Sapim Race Butted Stainless Steel spokes (Black) and 14mm Brass Polyax Nipples (Black)
Attributes
| Axle Type | 12mm TA |
| Rim Color | Black |
| Rim Construction | Double wall |
| Depth | 18mm |
| Rim Drilling | F: 21, R: 24 |
| Rim External Width | 27mm |
| Rim Internal Width | 23mm |
| Rim Material | Aluminum |
| Rim Model | WTB ST i23 TCS |
| Skewers Included | No |
| Spoke Type | Sapim Race |
| Valve | Presta |
| Wheel-Brake Comp. | Disc Center Lock |
| Wheel Diameter/ISO | 700C / 622 |
| Wheel Tire Type | Tubeless Compatible |
| Rim inner width range | 22-27.9mm |
